  • 316L annealed stainless steel
  • 25kHz∼40kHz transducer modules
  • Simultaneous Multi-Frequency
  • Four(4) standard size
  • Availab;e in 200 Watt and 1200 Watt output
  • Standard sizes as well as custom sizes available





  • Type BM
    For bottom-mounting, they are fixed to tank bottom, using integral mounting flange.
    Other lengths available.

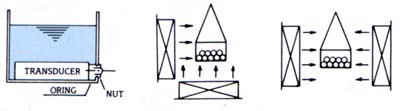

  • Type SM
    For high-power applications,side-mounting was commonly used.
    One or two bulkhead fittings, depending on transducer size.
    Other lengths available








Model

Out put
(W)

Frequency
(KHZ)

Dimension
(A Type)

Dimension
(B Type)

Generator

DUT-200B

200

28∼40

200×150×110

.

DUG-200

DUT-400B

400

28∼40

250×180×110

.

DUG-400

DUT-600B

600

28∼40

280×200×110

.

DUG-600

DUT-1200B

1200

28∼40
350×300×110
400×240×110
DUG-1200






Model

Out put
(W)

Frequency
(KHZ)

M'TL
(재질)

Generator

Transducer
Liguid
(사용액)

DHU/T-1200

1200
28~40
Titanium
(티타늄)
DUG/T-1200
DUT/T-1200
황산, 염산,
질산의 강산용
특수용(티타늄) 진동부의 경우 보증기간 6개월
