Standard System Features


All Daehan SP(super precision) series aqueous cleaning systems come with the following standard features:

  • Automated transport
    Multi-Basket Handling System simultaneously conveys tray shuttle.
  • Stainless steel construction
    To improve corrosion resistance, all tanks, frame are constructed of annealed 316 stainless steel.
  • R/O water system
    To meet contamination requirements of customer, we normally use deionized water.
  • Communication Modem
    To communicate with customer's own shop floor system for getting a data of production amount, trouble time, we have communication modem.

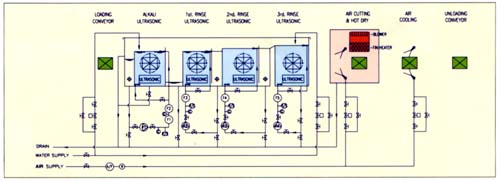

STANDARD CONFIGURATION

1st Washing station

2nd Washing station

1st Rinse station

  • Ultrasonic
  • R/O water use
  • Tray shuttle Rotation
  • Automatic temperature control
  • Automatic water level control
  • Cartridge Filtered recirculation
  • Top water blow
  • Overflow to unified sub tank 1 & 2
  • Oil skimmer
  • For fine precision cleaning, we are using the same process one more as 1st washing process.
  • Recycling water flows from tank #3 & 4
  • No oil skimmer

¡¤

  • Ultrasonic
  • R/O water use
  • Tray shuttle Rotation
  • Automatic temperature control
  • Automatic water level control
  • Cartridge Filtered recirculation
  • Top water blow
  • Overflow to unified sub tank 3 & 4

2nd Rinse station

3rd Rinse station

Compressed air blow station

  • For the better rinsing, same procedure as 1st rinsing
  • Recycling water flows from tank #5
  • This final rinse is independent and managed very carefully
  • Compressed & regulated air
  • Adjustable nozzle angle
  • Tray shuttle rotation
  • 0.01 micron fine filtrations

Hot air blow dry station

Cooling station

  • Compressed & regulated air
  • Adjustable nozzle angle
  • Tray shuttle rotation
  • Heating system
  • 0.01 micron fine filtrations
  • Compressed & regulated air
  • 0.01 micron fine filtrations






SUMMARY OF OPERATION

  • The transport system simultaneously conveys multiple shuttle through the cleaning system in a parallel manner to increase production.
  • The shuttles are immersed in a heated R/O water and detergent and rotated.
  • After the 1st & 2nd washing process, the shuttle is rinsed with R/O pure water. At that time, the shuttle is rotated in the ultrasonic main tank.(3¡¿Rinse)
  • A blast of fine compressed air blows water droplets after the final rinse.
  • After the blow-off, compressed hot air blowing is done for drying, then to cooling for good handling.
  • The operation of washing, rinsing, air blowing, hot blowing and cooling are done at the same time by simultaneous loading system.
  • From the 1st stage to the final cooling process, the shuttles are always rotated for high quality of super precision washing.
